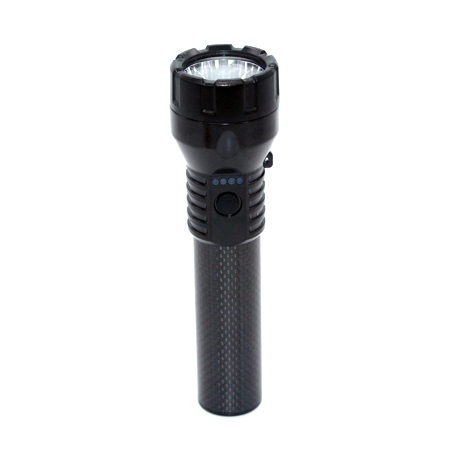

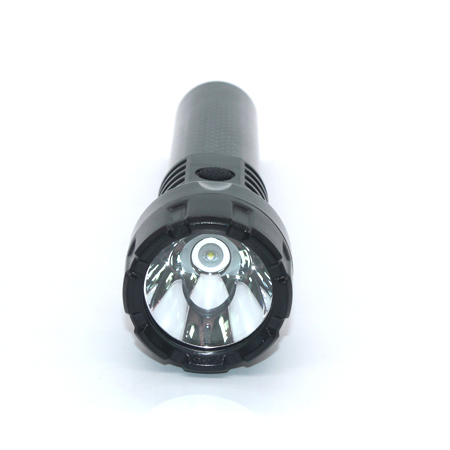

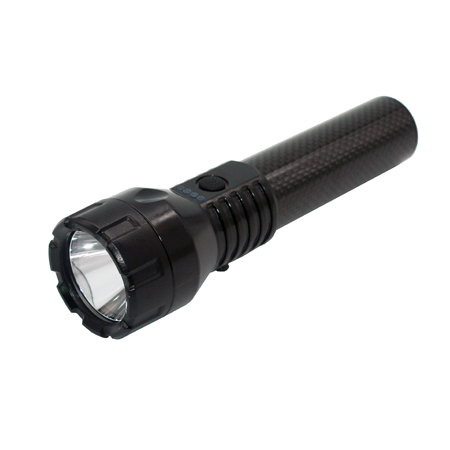

LED Intrinsically Safe Flashlight

Item NO.: CES-EX-FL-7520

CES-EX-FL-7520 LED intrinsically safe torch flashlight widely used in the metallurgical industry, railways, grid power, coal power plants, large enterprises and industries, confined spaces, jobs requiring working at heights, maintenance works, daily indoor outdoor patrol, construction works, night patrol, daily equipments and instruments maintenance works, soldier's individual operations at night, night emergency repair sites and unkown area investigations and so on.

atex intrinsically safe torch
atex flashlights
intrinsically safe torch flashlight

Features:

  • Superb Energy Efficiency: LED light source adopting world famous brand, high lumen efficiency, high CRI, low energy consumption, extra-long service life, maintenance free results in no further operation costs.
  • Economically & Environmentally Friendly: Dual protection high-energy memoryless lithium battery has the advantages of large capacity, long service life, high number of rechargeable times, low self-discharge rate, economically and environmentally friendly, and can prevent instances of overcharge, over discharge and short circuit
  • There are three working modes: strong light, working light and stroboscopic. The switch is controlled by intelligent chip. It has the functions of low-power warning and automatic low-power protection. The strong and weak light can be converted at will; The intelligent charger has over charge, short circuit protection and charging display device, which can extend the service life of lamps and lanterns.
  • Power level detection: Humanized four stage power indication (through 4 mini light grids) and low voltage warning function design, which enables power level detection at any time; when the power is insufficient, the last light bead will flash to prompt charging.
  • Waterproofing and fall resistance: The casing is made of imported high hardness carbon fiber composites to ensure that the product can withstand strong collision and impact, high and low temperature, and is dustproof and anti-corrosion. It is suitable for use in extreme environments and climate conditions.
  • Light and durable: Small volume, light weight, exquisite structure, light and beautiful; It can be carried by hand, strap, hanging and other ways to meet various work needs.

Battery

  • Rated voltage: DC 3.7 V
  • Battery capacity 2600 mAh
  • Battery type: 18650 lithium battery
  • Battery battery life: (Rechargeable times)≥1000
  • Charging time: 8 hours

LED Light Source

  • Light source CREE XPE
  • Illumination Modes: Spotlight / Working light
  • Average service life: 100000 hours
  • Rated power: 5W
  • Illuminance value: 3840 Lux
  • Luminous flux: 225 LM
  • Light intensity 15360 cd
  • Irradiation distance 248 M

Parameters

  • Continuous working time: ≥8 hours (Strong light mode ), ≥16 hours (Working light mode )
  • Work mode: 3-step adjustable
  • Ambient Temperature (AT):-20℃~+40℃
  • Relative Humidity (RH):≤95(AT @ 25℃)
  • Anti-drop height: 2 Meters
  • Dimensions: Φ35x159
  • Weight: 200g
  • Protection Level: IP66
  • Ex Markings: Ex ib IIC T4 Gb



Operation Instructions for F-7520 LED Intrinsically Safe Flashlight

1. Each short press of the switch button, the brightness of the flashlight will cycle in the following sequence "working mode - strong light mode - off"; under any of these modes, 3 ~ 5 seconds of long press on the button will change the lamp into the flashing mode.
2. Both ends of the battery are internal positive and external negative. The lamps placed in any direction can be used normally.
3. The led intrinsically safe flashlight is equipped with 4 power indication lights to help users identify remaining power at any time. The stages of remaining power are as follows:

100%~75% ●●●● 75% ~50% ●●● 50%~25% ●● 25%~10% ●

When the power falls below 10%, one of the four indication lights (3.0V ~ 2.8V) will flash continuously for 3 times, indicating imminent power outage, the flashlight will become dimmer or unadjustable. At time of this, batteries should be replaced or recharged immediately.

Special Note

This intrinsically safe led torch comes with power shortage indication function. When the battery level is low, the lamp will flash 5 times, the strong light mode will be automatically switched to the working light mode, prolonging the lighting duration and reminding the user to charge in time.
