Rechargeable Explosion Proof LED Head Torch

Item NO.: CES-EX-FL-7302A

CESP FL-7302A is widely used in oil field, petro-chemical industry, electrical power, metallurgy, firefighting, ships & boats as portable mobile lights for maintenance and patrol tasks, it is also suitable for wearing on the helmet as a headlamp. (zone 1, zone 2 hazardous areas).

explosion proof head torch
atex zone 1 head torch
hazardous area headtorch



  • Security & Reliability: This product has passed the explosion-proof certification from national authority, has excellent explosion-proof performance, and can be used safely and reliably in various flammable and explosive locations
  • Superb Energy Efficiency: Adopting high level output LED light source,long service life, average lamp longevity 100000 hours.
  • Economically & Environmentally Friendly: High energy lithium ion battery, great charging and discharging ability, high number of rechargeable times, economically & environmentally Friendly, low self discharge rate.
  • Dual protection: The battery adopts dual IC and dual MOS protection boards with overcharge, over discharge and Short circuit protection function.
  • Power level detection: Humanized four stage power indication (through 4 mini light grids) and low voltage warning function design, which enables power level detection at any time; when the power is insufficient, the last light bead will flash to prompt charging.

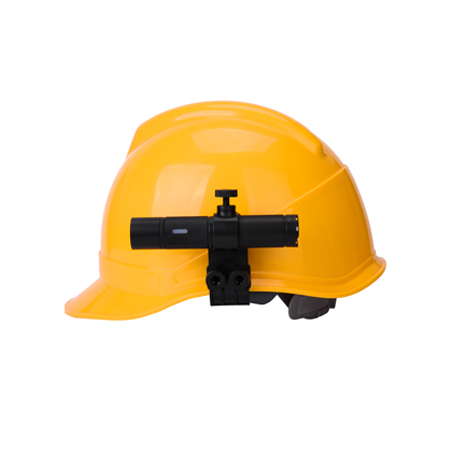

  • Stylish Looks: Small size, light weight, especially suitable for wearing on the helmet as a headlamp.
  • Waterproofing and fall resistance: The casing is made of light alloy to ensure that the product can withstand strong collision and impact, high and low temperature, and is dustproof and anti-corrosion. It is suitable for use in extreme environments and climate conditions.
  • Light and durable: Small volume, light weight, exquisite structure, light and beautiful; It can be carried by hand, strap, hanging and other ways to meet various work needs.
  • Signal indication: The tail is equipped with signal indication function, it is visible within 30m.



Battery

  • Rated voltage: DC 3.7 V
  • Battery capacity 1900 mAh
  • Battery type: 18500 lithium battery
  • Battery battery life: (Rechargeable times)≥1000
  • Charging time: 4 hours

LED Light Source

  • Light source CREE XPE
  • Illumination Modes: Strong light/ Working light
  • Average service life: 100000 hours
  • Rated power: 3W
  • Illuminance value: 2240 Lux
  • Luminous flux: 265 LM
  • Light intensity: 8960 cd
  • Irradiation distance 189 Meters

Parameters

  • Continuous working time: ≥4 hours (Strong light mode ), ≥8 hours (Working light mode )
  • Work mode: 3-step adjustable
  • Ambient Temperature (AT):-20℃~+40℃
  • Relative Humidity (RH):≤95(AT @ 25℃)
  • Anti-drop height: 2 Meters
  • Dimensions: Φ23x121
  • Weight: 9g
  • Protection Level: Protection Level: IP66 or IP68(under water: 2 meter, work time: 1 hour)
  • Ex Markings: Ex ib IIC T4 Gb



Operation Instructions for FL-7302A Explosion Proof Head Torch

1. Each short press of the switch button, the brightness of the flashlight will cycle in the following sequence "working mode - strong light mode - flashing mode - off".
2. The FL-7302A LED explosion proof head torch is equipped with 4 power indication lights to help users identify remaining power at any time. The stages of remaining power are as follows:

100%~75% ●●●● 75% ~50% ●●● 50%~25% ●● 25%~10% ●

When the power falls below 10%, one of the four indication lights will flash continuously for 3 times (3.0V ~ 2.8V), indicating imminent power outage, which is to say the strong light working mode can last for about another 15 minutes, whereas the working light mode can last for about another 30 minutes. At this point, batteries should be replaced or recharged immediately.

Special Note

When the LED explosion proof head torch unused for more than 3 months, battery maintenance will be required. To do this, first discharge the battery completely, then recharge it to its full capacity.
