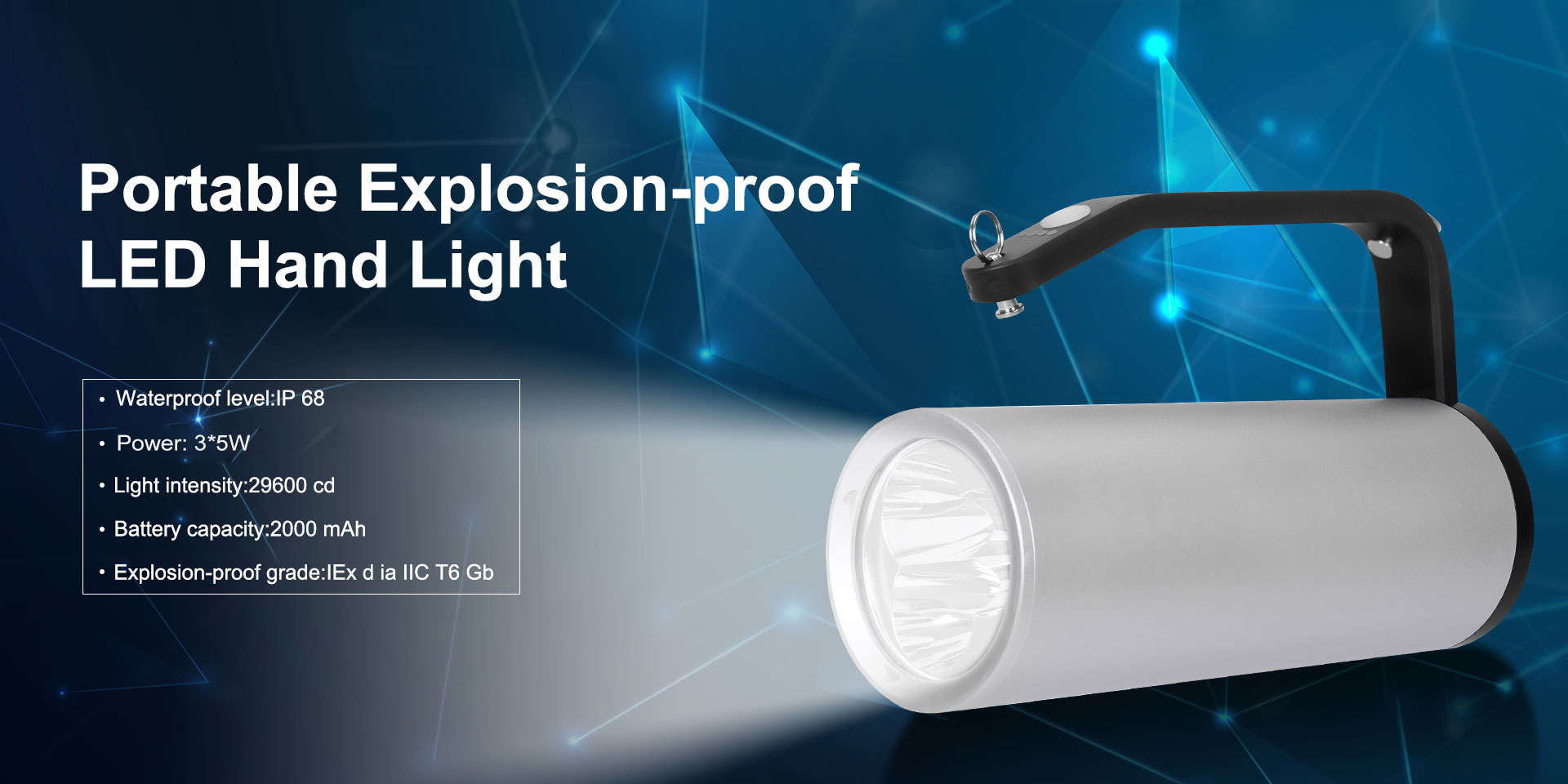

Explosion Proof LED Torch Light
Item NO.: CES-EX-FL-7101
This explosion proof torch light suitable for class II flammable and explosive environments, and can be used as work lighting, emergency lighting and signal indication for maintenance, rescue, disaster relief, patrol inspection, warning, etc. (Zone 1, zone 2 hazardous areas)
- CESP FL-7101 explosion proof torch light has passed the explosion-proof certification from national authority, has excellent explosion-proof performance, and can be used safely and reliably in various flammable and explosive locations.
- Superb Energy Efficiency： LED light source adopting world famous brand, high lumen efficiency, high CRI, low energy consumption, extra-long service life, maintenance free results in no further operation costs.
- Economically & Environmentally Friendly: High-energy memoryless lithium battery has the advantages of large capacity, long service life, charging flexibility, high number of rechargeable times, low self-discharge rate, economically and environmentally friendly.
- Intelligent control: Adopting light touch lumen adjustment switch. Strong light and working light can be tuned at will. The intelligent charging mode can be operated for chargers above 5V2A. The lamp is equipped with overcharge protection and charging display device and output function. In any mode, long press for 3 seconds to switch to the output function to charge connected digital products. Press again to switch back to the lighting mode and cut off the charging output function.
- Waterproofing and fall resistance: The casing is made of imported high hardness alloy material to ensure that the product can withstand strong collision and impact. Multiple waterproof structures and excellent waterproof performance, it can be used in various harsh environments.
- Anti strong interference: Adopting scientific module driving circuit with strong anti-shock and anti-electromagnetic interference capabilities.
- Heat insulation: the LED radiator is effectively isolated from the battery to improve the stability of the lamp.

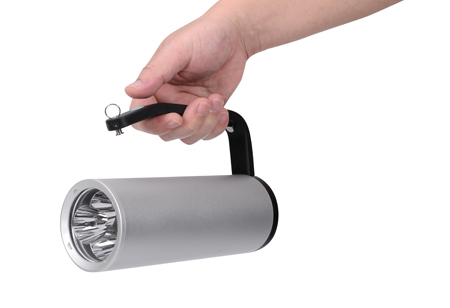

- Light weight and strong durability: Small size, light weight, structurally sound design, aesthetically pleasing. It can be handheld, strapped on, hung and so on, to meet various work demands.
- Rated voltage: DC 14.8 V
- Battery capacity 2200 mAh
- Battery type: 18650 lithium battery
- Battery battery life: (Rechargeable times)≥1000
- Charging time: 8 hours
LED Light Source
- Light source CREE XPE
- Illumination Modes: Spotlight/Floodlight
- Average service life: 100000 hours
- Rated power: 3*5W
- Illuminance value: 7400 Lux
- Luminous flux: 1010 LM
- Light intensity: 29600 cd
- Irradiation distance: 344 M
- Continuous working time: ≥8 hours (Strong light mode ), ≥16 hours (Working light mode )
- Work mode: 3-step adjustable
- Ambient Temperature (AT)：-20℃~+40℃
- Relative Humidity (RH)：≤85（AT @ 25℃）
- Anti-drop height: 2 Meters
- Dimensions: Φ35x159
- Weight: 925g
- Protection Level: IP68
- Ex Markings: Ex d ia IIC T6 Gb

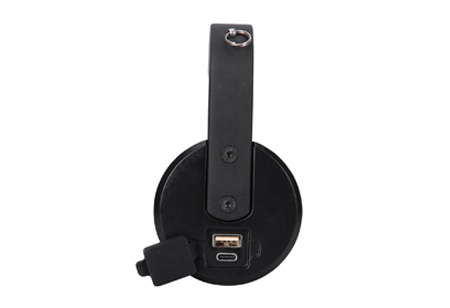

1. Before operating the FL-7101 LED explosion proof torch light, please use qualified 5V2A type-C charger that's conforming to the national standards to charge the product. During charging, the indicator light at the handle uses the running light to display the charging status. When fully charged, all four indicator lights will be on without flashing. After charging, please cover the charger with the dust-proof rubber plug..
2. When using this explosion proof torch light, first press on the switch will turn on the working light, second press on the switch will turn on the strong light, third press on the switch will turn the light into stroboscopic state..

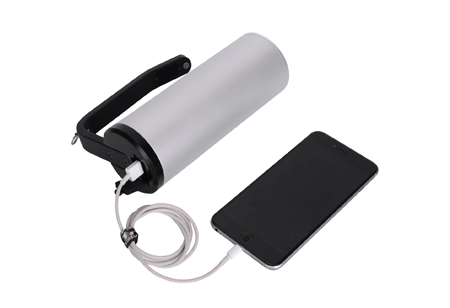

3. This FL-7101 explosion proof torchlight can supply power to digital products. After long press on the switch for 3 seconds, the lamp changes the output mode and starts charging connected digital products. The output voltage is 5V and the current is 1A. While charging digital products, please make sure the environment is safe.
4. The battery of this FL-7101 explosion proof torchlight is in the form of replaceable battery pack. Unscrew the tail cover and barrel, check the nut with maintenance mark on the top of the battery compartment, and unscrew it to replace the battery.
5. If the explosion proof led torch light is fully charged, it can be used at any time within 3month, if the lamp is to be left unused for a long time, please make sure it’s charged to its full capacity every other 3 months.
CESP FL-7101explosion proof led torch light is designed with four stage power indication (through 4 mini light grids), when the power voltage is low, the lamp will flash indicating low power levels, and the brightness of the lamp will be reduced, at this time, the lamp should be charged promptly..
