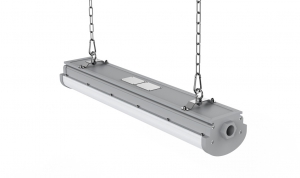

Explosion Proof LED Tube Replacement - 1ft 2ft - Zone1 - Pendant Chain Mount
1ft 2ft Explosion Proof LED Tube Replacement - Zone 1 Zone 2 - Pendant Chain Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pendant chain mount (See Installation manual of CES-EX-LN-02P )

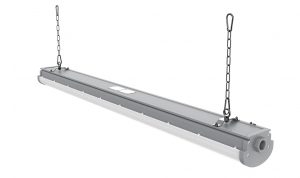

Explosion Proof LED Linear Light - 3ft 4ft - Zone 1 - Pendant Chain Mount
3ft 4ft Hazardous Area Linear Fluorescent Light - Zone 1 - Pendant Chain Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (3 Foot): 40W / 50W / 60W / 70W
- Power (4 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pendant chain mount (See Installation manual of CES-EX-LN-02P )
Explosion proof Fluorescent Lamp Replacement - 1ft 2ft - Zone 1 - Pole Mount
1ft 2ft Explosion Proof Fluorescent Lamp Replacement - Zone 1 Zone 2 - Pole Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pole mount (See Installation manual of CES-EX-LN-02P )
Explosion Proof Fluorescent Lighting Replacement - 3ft 4ft - Pole Mount
Explosion Proof Fluorescent Lighting Replacement - 3ft 4ft - Pole Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 120lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 40W / 50W / 60W / 70W
- Power (2 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Pole mount (See Installation manual of CES-EX-LN-02P )
Explosion Proof LED Tube Light Replacement - 3ft 4ft - Zone 1 - Wall Mount
3ft 4ft Explosion Proof LED Tube Replacement - Wall Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (3 Foot): 40W / 50W / 60W / 70W
- Power (4 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Wall mount (See Installation manual of CES-EX-LN-02P )
- Mounting Angle：0°to ±90°;
Hazardous Area Linear Fluorescent Light - 3ft 4ft - Zone 1 - Ceiling Mount
3ft 4ft Hazardous Area Linear Fluorescent Light - Zone 1 - Ceilling Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 40W / 50W / 60W / 70W
- Power (2 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Foot), 5.5KG (4 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Ceiling mount (See Installation manual of CES-EX-LN-02P )

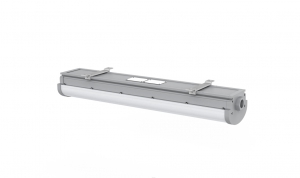

Ex-Proof Fluorescent Light Replacement - 1ft 2ft - Ceiling Mount
1ft 2ft Explosion Proof Fluorescent Light Replacement - Zone 1 Zone 21 - Ceiling Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +50°C Ambient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing – Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED Chip: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Ceiling mount (See Installation manual of CES-EX-LN-02P )

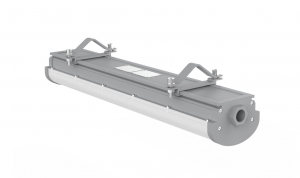

Ex Fluorescent Light Replacement - 1ft 2ft - Zone 1 - Wall Mount
1ft 2ft Explosion Proof Fluorescent Light Replacement - Wall Mount
Applications:
• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
ATEX: EN IEC 60079-0-2018; EN 60079-7-2015; EN 60079-18-2015; EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-7-2015; IEC 60079-18-2014; IEC 60079-31-2013;
IECEx & ATEX :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to + 50°C CAmbient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC Cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LED: 3030 LEDs
- LED Driver: High efficiency LED driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Foot), 3KG (2 Foot)
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex eb mb IIC T5 Gb
- II 2D Ex tb IIIC T75°C Db
- IP66
- Certificate No：SEV 21 ATEX 0578 X
IECEx:
-
• Ex eb mb IIC T5 Gb
• Ex tb IIIC T75 °C Db
• IP66
• Certificate No：IECEx SEV 21.0038X
Amounting
Versatile mounting options:
- Wall mount (See Installation manual of CES-EX-LN-02P )
- Mounting Angle：0°to ±90°;

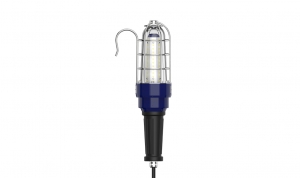

Zone 1 Explosion Proof LED Hand Lamp - 360 Beam Angle - Side Hook
Applications:
- The lights in this series are capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc. Our Portable Electric Hand Lamps are designed for Zone 1, Zone 2, Zone 21, Zone22 environments.
ATEX: EN IEC 60079-0-2018; EN 60079-1-2014; EN 60079-7-2015;EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-1-2014; IEC 60079-7-2017; IEC 60079-31-2013;
IECEx & ATEX :
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD - SEE INSTRUCTIONS”
- THE FLAMEPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED.
- End user shall use certified cable gland type of protection for final installation purpose.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 80℃ for T6.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 60.1℃ and cable entry point is 52.0℃.
- For handle, there is “POTENTIAL ELECTROSTATIC CHARGING HAZARD”. When used in the explosive environment, please touch with an insulating object, wipe with a damp cloth.
Features
- Industry-leading efficacy: up to 100lm/W±5
- -40°C to +50°CCAmbient operating temperature
- Swivel hook for hanging and hands free operation
- Prevent drop damage
- 5 years warranty
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Beam angle:360°
Parameters
- Power: 10W / 20W / 30W
- Input voltage 1: AC100V-277V; Frequency: 50/60Hz;
- Input voltage 2: DC110V ;
- Input voltage 3: DC12V-24V;
- Lumen flux: 1000LM/2000LM/3000LM
- CCT: 3000K/4000K/6500K (Optional)
- LEDs: 3030
- LED Driver: High Efficiency LED Driver
- Entry Size: M20X1.5
- Dimension: Φ101.5 x 516.5 mm
- Weight: 2.4KG
Certificate & Standard
Have certified CES-EX-SC with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex db eb IIC T6 Gb
- II 2D Ex tb IIIC T 80°C Db
- Certify No.：SEV 20 ATEX 0369 X
IECEx:
- Ex db eb IIC T6 Gb
- Ex tb IIIC T 80°C Db
- Certify No.：IECEx SEV 20.0003X

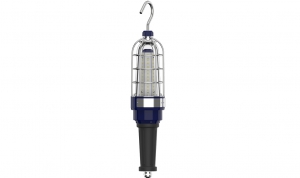

Zone 1 Explosion Proof LED Hand Lamp - 360 Beam Angle - Top hook
The lights in this series are capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc. Our Portable Electric Hand Lamps are designed for Zone 1, Zone 2, Zone 21, Zone22 environments.
ATEX: EN IEC 60079-0-2018; EN 60079-1-2014; EN 60079-7-2015;EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-1-2014; IEC 60079-7-2017; IEC 60079-31-2013;
IECEx & ATEX :
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD - SEE INSTRUCTIONS”
- THE FLAMEPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED.
- End user shall use certified cable gland type of protection for final installation purpose.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 80℃ for T6.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 60.1℃ and cable entry point is 52.0℃.
- For handle, there is “POTENTIAL ELECTROSTATIC CHARGING HAZARD”. When used in the explosive environment, please touch with an insulating object, wipe with a damp cloth.
Features
- Industry-leading efficacy: up to 100lm/W±5
- -40°C to +50°CCAmbient operating temperature
- Swivel hook for hanging and hands free operation
- Prevent drop damage
- 5 years warranty
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass
- Beam angle:360°
Parameters
- Power: 10W / 20W / 30W
- Input voltage 1: AC100V-277V; Frequency: 50/60Hz;
- Input voltage 2: DC110V ;
- Input voltage 3: DC12V-24V;
- Lumen flux: 1000LM/2000LM/3000LM
- CCT: 3000K, 4000K, 6500K (Optional)
- LEDs: 3030
- LED Driver: High Efficiency LED Driver
- Entry Size: M20X1.5
- Dimension: Φ101.5 x 516.5 mm
- Weight: 2.4KG
Certificate & Standard
Have certified CES-EX-SC with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex db eb IIC T6 Gb
- II 2D Ex tb IIIC T 80°C Db
- Certify No.：SEV 20 ATEX 0369 X
IECEx:
- Ex db eb IIC T6 Gb
- Ex tb IIIC T 80°C Db
- Certify No.：IECEx SEV 20.0003X
