IECEx ATEX Certified Explosion proof LED Lights - Zone 1 Zone 2 Hazardous Area Lighting
CESP Zone 1 Zone 2 hazardous location LED lights are in accordance with International Protection Techniques (Equipment Protection Levels), including IEC/EN 60079-0 (General Requirement), IEC/EN 60079-1 (Flameproof Enclosure), IEC/EN 60079-7 (Increased Safety), IEC/EN 60079-11 (Intrinsic Safety), IEC/EN 60079-15 (Type of Protection), IEC/EN 60079-18, IEC/EN 60079-28, IEC/EN 60079-31. If you are not sure about the Classified of your lighting application environment, please contact our technical department for the solution.
For Zone 1 Zone 2, Zone 21 Zone 22 hazardous area led lighting, 20W - 200W, 130lm/W,aluminum alloy + 8mm tempered glass, multi-installation for different projects, such as light tower, canopy light, marine grade.
Flameproof enclosure, Ex db op is IIC T6 Gb， Zone 1 & Zone 21 with explosive gas atmosphere, Zone 21 and Zone22 with explosive dust atmosphere, 10mm temered glass, 7J impact resistance，up to 26000lm.
Flameproof enclosure, Ex db op is IIC T6 Gb, IP68 protection grade, tempered glass 10mm, withstand impacts up to 10J, 2 foot and 4 foot Length, 50Watt- 240Watt, 130lm/W light efficacy.
Zone 1 & Zone 21, 1ft, 2ft, 3ft, 4ft length can be selected, replace the traditional explosion-proof three-proof lamp, explosion-proof fluorescent tube, anti-corrosion, anti-glare, anti-drop, competitive price.
Flameproof LED hand lamp for Zone 1 & Zone 21 hazardous areas, 10mm tempered glass, pass the multi-angle drop test, 10W, 20W, 30W Power, can be connected to the cable, emergency power box.
The CES-EX-SF series explosion-proof ceiling lamp has a strong shell, with features such as impact resistance, vibration resistance, and corrosion resistance. It can be used in hazardous environments of Zone 1&21, Zone 2&22.
CES-EX-JX Series is your go-to solution for illuminating hazardous Zone 1 and Zone 21 areas. With ATEX approval, these Explosion-proof LED Flood Lights offer unbeatable safety standards.
Discover the pinnacle of safety and illumination with our CES-EX-GBX Series Explosion-proof LED High Bay Lights. Designed for hazardous Zone 1 and Zone 21 areas, these lights boast ATEX approval, ensuring the highest safety standards.
GB-02 explosion-proof lights are made of alloy aluminum and tempered glass, with shock resistance and anti-vibration performance. The luminaires have passed the ATEX IECEx standards test, from 30W to 80W for hazardous area lighting.
LN-02 explosion-proof lights obtained an IECEx ATEX certificate, it's safe for the Zone 1 and Zone 2 hazardous locations. The copper-free aluminum alloy body is powder-coated to increase durability and beautiful appearance, are able to withstand violent shaking and shock resistance.
an innovative line of LED hazardous area lighting products, specifically designed for use in potentially explosive atmospheres (Zone 1/21 & 2/22) within harsh industrial settings such as coal mines and oil & gas facilities.
Explosion-proof safety exit lamps are for personnel evacuation, and fire operations to provide lighting fire emergency lamps! It usually uses an external power supply, when the power automatically switches to the battery power state!
Friday, 08 April 2022 05:54

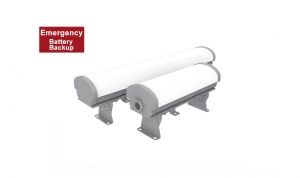

1ft 2ft Explosion Proof Emergency Light - 1.5 Hours Battery Backup
Destription:
The Explosion Proof Linear Fixture series features is a 90 minute emergency backup battery in 12W designed for hazardous environments where with explosive gas atmosphere or explosive dust atmosphere may be present.
This battery backup lighting fixtures made of the die-cast aluminum and the PC cover. Good heat, and 6J impact resistance.
Installation: pendant, ceiling, pole or more customized.
Adopt to the high light-efficacy LED source, up to 140lm/W, the CCT is 2700K, 3000K, 4000K, 5000K, 5700K, 6500K optional, no flicker, no glare.
The electrophoresis technology and the multiple coats of marine anti-corrosion paint, the all the mounting brackets and accessories are made of 316 stainless steel, UL1598A anti-corrosion standard can for marine location.
Warning :
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +45°C /50°C /55°CAmbient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass (10mm)
- Beam angle: 120°
Parameters
- Power (1 Foot): 20W / 30W
- Power (2 Foot): 20W / 30W / 40W / 50W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2400LM - 6000LM
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030 (6V)
- LED Driver: High efficiency driver
- Dimension: 329 mm x 125mm x 88.7 mm / 629 mm x 125mm x 88.7 mm
- Weight: 2.5KG (1 Feet), 3KG (2 Feet)
- Backup battery: Li-ion battery, 12W power
- Emergency: ≥ 1.5 hours
Amounting
Versatile mounting options:
- Ceiling mount (See Installation manual of CES-EX-LN-02P )
- Optional
- Mounting Angle：0°to ±90°;
Published in
Ex-proof Fluoresent Light Replacement
Friday, 08 April 2022 05:54

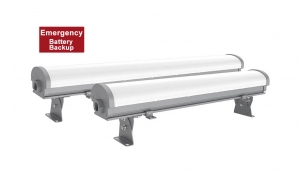

3ft 4ft Explosion Proof Emergency Light - 1.5 Hours Battery Backup
Description:
This 3ft 4ft Explosion Proof Linear Fixture series features a 90 minute emergency backup battery in 12W designed for hazardous environments where with explosive gas atmosphere or explosive dust atmosphere may be present.
This battery backup lighting fixtures made of the die-cast aluminum and the PC cover. Good heat, and 6J impact resistance.
Installation: pendant, ceiling, pole or more customized.
Adopt to the high light-efficacy LED source, up to 140lm/W, the CCT is 2700K, 3000K, 4000K, 5000K, 5700K, 6500K optional, no flicker, no glare.
The electrophoresis technology and the multiple coats of marine anti-corrosion paint, the all the mounting brackets and accessories are made of 316 stainless steel, UL1598A anti-corrosion standard can for marine location.
Warning
- “CAUTION-USEFASTENER WITH YIELD STRESS ≥ 640 MPa”；
- “WARNING – DO NOT OPEN WHEN ENERGIZED”；
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；
- " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”；
- “THE FLAMPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED”;
- End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose；
- External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG；
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 130℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
Features
- Industry-leading efficacy: up to 140lm/W±5
- -40°C to +45°C /50°C /55°CAmbient operating temperature
- Wide optics for uniform illumination
- 5 years warranty
- Entry Size: M25Χ1.5 or NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 )
- Lens – PC cover
- Beam angle: 120°
Parameters
- Power (1 Foot): 40W / 50W / 60W / 70W
- Power (2 Foot): 40W / 50W / 60W / 70W / 80W / 100W
- Input voltage: AC100-277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM - 12000LM
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030 (6V)
- LED Driver: High efficiency driver
- Dimension: 929 mm x 125mm x 88.7 mm / 1235mm x 155mm x 148mm
- Weight: 4.5KG (3 Feet), 5.5KG (4 Feet)
- Backup battery: Li-ion battery, 12W power
- Emergency: ≥ 1.5 hours
Amounting
Versatile mounting options:
- Ceiling mount (See Installation manual of CES-EX-LN-02P )
- Optional
- Mounting Angle：0°to ±90°;
Published in
Ex-proof Fluoresent Light Replacement
Friday, 08 April 2022 02:00

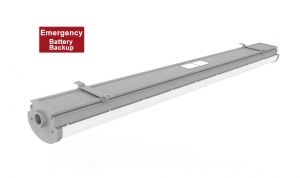

4ft Class 1 Division 2 Emergency Linear Lights - 90 min backup battery
Description:
CES-EX-LN-02P-E series 4ft length emergency explosion proof linear LED fixtures, 40W, 50W, 60W, 65W, 70W, 75W power, with an backup ( 12 Watt ) Li-ion battery that provides energy efficient illumination, the emergency backup provide 1680 lumens for the 1.5 hours.
This linear hazardous location LED fixtures on only obtained UL844 certificate, can used for the hazard location of Class 1 Div 2 Groups A, B, C and D. For design and structure, this emergency hazardous location LED fixtures made of the die-cast aluminum and the PC cover. Good heat, and 6J impact resistance.
In addition, we designed this fixtures for marine location ( UL1598A certificate), we adopt to the electrophoresis technology and the multiple coats of marine anti-corrosion paint, the all the mounting brackets and accessories are made of 316 stainless steel, UL1598A anti-corrosion standard can for marine location.
For the optics, adopt to the high light efficacy LED source, up to 140lm/W, the CCT 2700K, 3000K, 4000K, 5000K, 5700K, 6500K optional, no flicker, no glare.
If you need IECEx and ATEx certified, please visit to 4ft emergency epxlosion proof linear lights of Zone 1.
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
- MIN 90°C (194°F) SUPPLY CONDUCTORS;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Industry-leading efficacy: up to 110 - 130lm/W
- -40°C to + 50°C Ambient operating temperature
- Mounting: Ceiling
- 5 years warranty
- Entry Size: NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 and 6063 )
- Lens – Polycarbonate (PC)
- Beam angle:120°
Parameters
- Power: 40W / 50W / 60W / 65W / 75W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 4800LM / 6000LM / 7200LM / 7800LM / 9000LM
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030 (6V)
- LED Driver: high Efficiency LED Driver
- Dimension: 1229 mm x 138.3mm x 98.1 mm
- Weight: 5.5KG
- Backup battery: Li-ion battery, 12W power
- Emergency: ≥90 mins
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the North American UL844 standards for hazardous location and environments.
NEC/CEC:
- Class I, Division 2, Groups A, B, C and D
- T-Class: T4A / T5
- Damp and wet locations
- Certify No：E475887
Standard:
- US: UL 844; UL 1598;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Hazardous Locaiton Fluorescent Light Replacement
Thursday, 07 April 2022 07:09

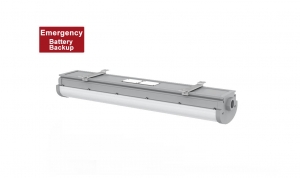

2ft Class 1 Division 2 Emergency Linear Lights - 90 min backup battery
Description:
CES-EX-LN-02P-E series 2ft length emergency explosion proof linear LED fixtures with an backup Li-ion battery that provides energy efficient illumination, the emergency backup provide 1680 lumens for the 1.5 hours.
This linear hazardous location LED fixtures on only obtained UL844 certificate, can used for the hazard location of Class 1 Div 2 Groups A, B, C and D. For design and structure, this emergency hazardous location LED fixtures made of the die-cast aluminum and the PC cover. Good heat, and 6J impact resistance.
In addition, we designed this fixtures for marine location ( UL1598A certificate), we adopt to the electrophoresis technology and the multiple coats of marine anti-corrosion paint, the all the mounting brackets and accessories are made of 316 stainless steel, UL1598A anti-corrosion standard can for marine location.
For the optics, adopt to the high light efficacy LED source, up to 140lm/W, the CCT 2700K, 3000K, 4000K, 5000K, 5700K, 6500K optional, no flicker, no glare.
If you need IECEx and ATEx certified, please visit to 2ft emergency epxlosion proof linear lights of Zone 1.
CUL for Hazloc:
- SUITABLE FOR WET LOCATIONS;
- THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
- MIN 90°C (194°F) SUPPLY CONDUCTORS;
- NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
- CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
- “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
Features
- Industry-leading efficacy: up to 110 - 130lm/W
- -40°C to + 50°C Ambient operating temperature
- Mounting: Ceiling
- 5 years warranty
- Entry Size: NPT 3/4”-14
- Housing –Aluminum alloy (ADC12 and 6063 )
- Lens – Polycarbonate (PC)
- Beam angle:120°
Parameters
- Power: 30W / 40W / 50W
- Input voltage: AC100-240/277V, 50/60Hz
- Power factor: 0.97
- Lumen flux: 2600LM / 4800LM / 6000LM
- CCT: 2700K - 6500K (Optional)
- LEDs: 3030 (6V)
- LED Driver: high Efficiency LED Driver
- Dimension: 629 mm x 125mm x 88.7 mm
- Weight: 3.0KG
- Backup battery: Li-ion battery, 12W power
- Emergency: ≥90 mins
Certificate & Standard
Have certified CES-EX-LN-02P fixtures with the North American UL844 standards for hazardous location and environments.
NEC/CEC:
- Class I, Division 2, Groups A, B, C and D
- T-Class: T4A / T5
- Damp and wet locations
- Certify No：E475887
Standard:
- US: UL 844; UL 1598;
- Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0
Special order
- Special Orders- Requirements
Contact us for special requirements
Tel: +86-755-83509822
Fax: +86-755-83509868
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Published in
Hazardous Locaiton Fluorescent Light Replacement
