Description:

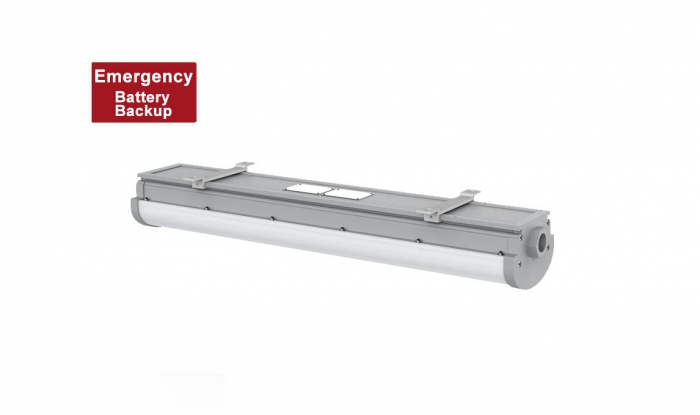

CES-EX-LN-02P-E series 2ft length emergency explosion proof linear LED fixtures with an backup Li-ion battery that provides energy efficient illumination, the emergency backup provide 1680 lumens for the 1.5 hours.

This linear hazardous location LED fixtures on only obtained UL844 certificate, can used for the hazard location of Class 1 Div 2 Groups A, B, C and D. For design and structure, this emergency hazardous location LED fixtures made of the die-cast aluminum and the PC cover. Good heat, and 6J impact resistance.

In addition, we designed this fixtures for marine location ( UL1598A certificate), we adopt to the electrophoresis technology and the multiple coats of marine anti-corrosion paint, the all the mounting brackets and accessories are made of 316 stainless steel, UL1598A anti-corrosion standard can for marine location.

For the optics, adopt to the high light efficacy LED source, up to 140lm/W, the CCT 2700K, 3000K, 4000K, 5000K, 5700K, 6500K optional, no flicker, no glare.

If you need IECEx and ATEx certified, please visit to 2ft emergency epxlosion proof linear lights of Zone 1.

CUL for Hazloc:

• SUITABLE FOR WET LOCATIONS;
• THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
• MIN 90°C (194°F) SUPPLY CONDUCTORS;
• NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
• CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
• THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
• “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
