SPORTS LIGHT SP1

Power:400/500/600/800/960/1200W



*Meanwell LED Drivers,AC100V~277V,PF>0.98,THD>15%. *30°/60°/90°×135°beam angles and excellent uniformity.

*Junction temperature<70℃,good heat dissipation provide longer lifetime. *Light transmittance of PC more than 93%.

*Intelligent dimming system.0~10V,DMX and DALI dimming models are available.

*IP67 rating is applicable to outdoor environment.

*Working environment in -35℃ to 55℃.

*UL/DLC/CE/RoHS/SAA/LM79/LM80/IES file is available.

*50000 hours lifespan with 5 years warranty.





Technical Parameters

  • Power:400/500/600/800/960/1200W
  • Input voltage: 100-277Vac,277-480Vac
  • CRI:80
  • LIGHT Efficiency:145lm/w
  • PF: 0.95
  • LED Chip:3030



The installation diagram

  • Material: Die-cast aluminum-alloy +PC
  • Beam angle: 10°/25°/45°/60°/90°
  • Working temperature:-40˚C~+50˚C
  • Warranty: 5 years
  • IP:IP66

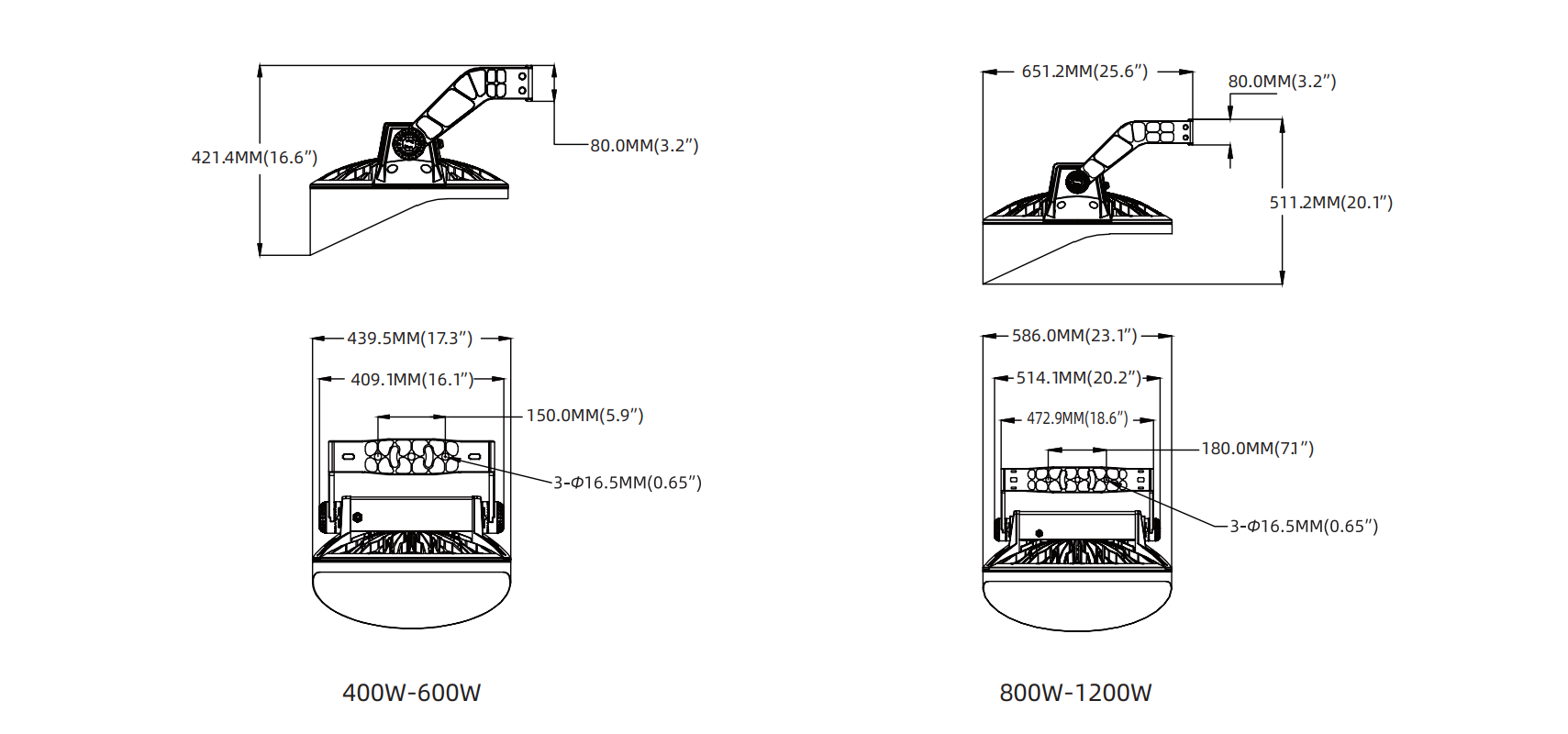

Dimension



explosion proof led high bay lighting size

Applications

Sport Stadiums ∙ Stages ∙ Large arenas

Notes for This LED SHOE BOX/AREA LIGHT SL SERIES:

  • Read the installation instructions before install the luminaire.
  • The input voltage and lamps should be matched, after connecting
  • the power line , please make sure the wiring section is insulated.
  • No-professionals, must not install and disassemble the lamps.
