hazardous location led flood light

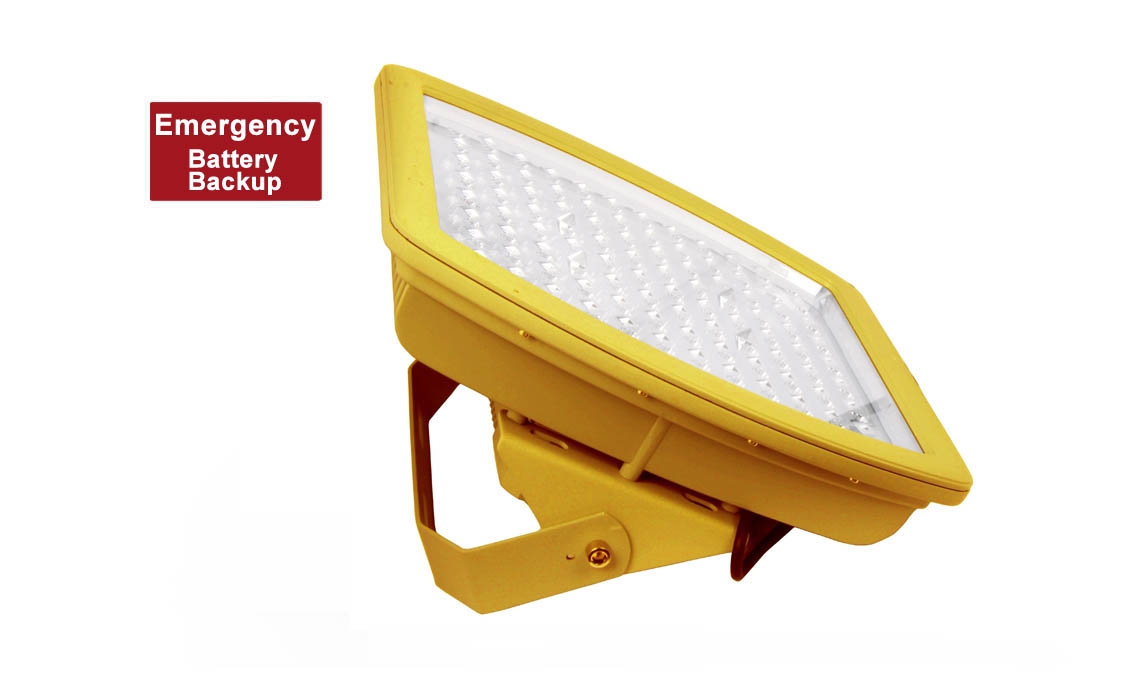

CES-J Series  Explosion Proof LED Flood Light

(Class 1 Division 2)

Max Power:40W/100W/200W

The housing is made of high-strength aluminum alloy + Tempered glass, it has more vibration and impact resistance. The excellent heat dissipation structure design. The efficiency and service life of the lamp can withstand high mechanical strength and temperature changes. The explosion-proof lamp has a variety of installation methods to choose, emergency optional, and is very suitable for hazardous location lighting.

This series explosion proof led floodlight adopts a sealed structure, which has high waterproof and anti-corrosion performance, and meets the UL1598A Marine Grade certification. it can be used in Class I, Division 2, Groups A, B , C and D hazardous area, Ex-proof Certificate NoE475887-UL-CUL.



Features

  • Industry-leading efficacy: up to 110 LPW
  • -40°C to +40°C Ambient operating temperature
  •  Low profile fixture
  •  Flush, swivel and pole mount options
  •  Wide optics for uniform illumination
  •  Fixture warranty
  •  Entry Size: NPT 3/4”-14 ;
  •  Housing –Aluminum alloy (ADC12 );
  •  Lens –tempered glass
  •  Beam angle: 108°, 120°

Parameters

  •  Power: 40W/100W/200W
  •  Input voltage: AC100-240/277V, 50/60Hz
  •  Power factor: 0.97
  •  Light efficacy: 110 - 140lm/W
  •  CCT: 3000K/4000K/5000K/5700K/6500K
  •  LEDs: 3030
  •  LED Driver: Meanwell HLG series

Certificate & Standard

Have certified CES-EX-J fixtures with the NEC and CEC standards for hazardous location and environments

  • Class I, Division 2, Groups A, B, C and D
  • T-Class: T *(T5/T6)
  • Damp and wet locations
  • Certificate No:E475887
  • US: UL 844; UL 1598;
  • Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;

Mounting

Versatile mounting options:
  • Ceiling mount
  • Drop mount
  • Pole mount
  • Wall Mount
  • Mounting Angle:0°to ±90°;

Dimension

Figure 1 applies to CES-J40S.

Length x width x height: 200mm x 200mm x 147 (195.5)mm

explosion proof led flood light 40W

Figure 2 applies to CES-J100.

Length x width x height: 300mm x 300mm x 165 (251)mm

100w explosion proof led flood light

Figure 3 applies to CES-J200.

Length x width x height: 400mm x 400mm x 169 (248)mm

200W explosion proof led flood light

Applications

CES-J Series Hazardous Location LED Flood Light can applied to Class I, Division 2, Groups A, B, C and D, such as wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.

Warning

CUL for Hazloc :

  •  SUITABLE FOR WET LOCATIONS;
  •  THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 40°C;
  •  FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST 90°C;
  •  NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
  • CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
  • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
  • “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.

UL for marine locations:

  • OUTSIDE TYPE or OUTSIDE TYPE (SALT WATER);
