Description:

Crafted from high-quality materials, the housing is made from aluminum alloy (ADC12 and 6063), which ensures excellent heat dissipation. The PC cover minimizes glare, providing a comfortable and safe work environment.

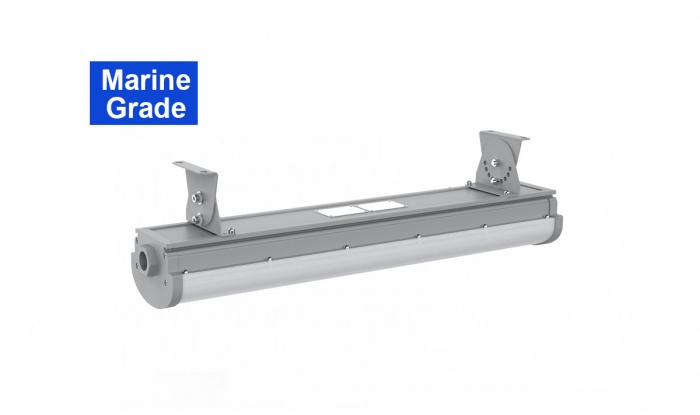

Our LED Explosion Proof Light is designed for durability and safety in marine environments. It features a marine-grade spray paint finish and 316 stainless steel accessories, which are UL1598A approved for added peace of mind.

With wattage options of 30W, 40W, and 50W, you can choose the appropriate lighting level for your workspace. The light is available in ceiling, pendant, and pole mount configurations, making it easy to install in any location.

Our 2ft LED Explosion Proof Light is ideal for use in hazardous locations where safety and durability are top priorities. Upgrade your lighting with the best - choose our LED Explosion Proof Light today.

If you need IECEx and ATEx certified, please visit to 2ft emergency epxlosion proof linear lights of Zone 1.



CUL for Hazloc:

  • SUITABLE FOR WET LOCATIONS;
  • THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __55__ °C (_131 °F);
  • MIN 90°C (194°F) SUPPLY CONDUCTORS;
  • NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
  • CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
  • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
  • CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.

Features

  • Industry-leading efficacy: up to 110 - 130lm/W
  • -40°C to + 50°C Ambient operating temperature
  • Mounting: Ceiling
  • 5 years warranty
  • Entry Size: NPT 3/4”-14
  • Housing –Aluminum alloy (ADC12 and 6063 )
  • Lens – Polycarbonate (PC)
  • Beam angle:120°

Parameters

  • Power: 30W / 40W / 50W
  • Input voltage: AC100-240/277V, 50/60Hz
  • Power factor: 0.97
  • Lumen flux: 2600LM / 4800LM / 6000LM
  • CCT: 2700K - 6500K (Optional)
  • LEDs: 3030 (6V)
  • LED Driver: high Efficiency LED Driver
  • Dimension: 629 mm x 125mm x 88.7 mm
  • Weight: 3.0KG

Certificate & Standard

Have certified CES-EX-LN-02P fixtures with the North American UL844 standards for hazardous location and environments.

NEC/CEC:

  • Class I, Division 2, Groups A, B, C and D
  • T-Class: T4A / T5
  • Damp and wet locations
  • Certify No:E475887

Standard:

  • US: UL 844; UL 1598;
  • UL1598A (Marines Luminaires): UL-US-2154886-0
  • Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0

Special order

  • Special Orders- Requirements
    Contact us for special requirements
