Applications:

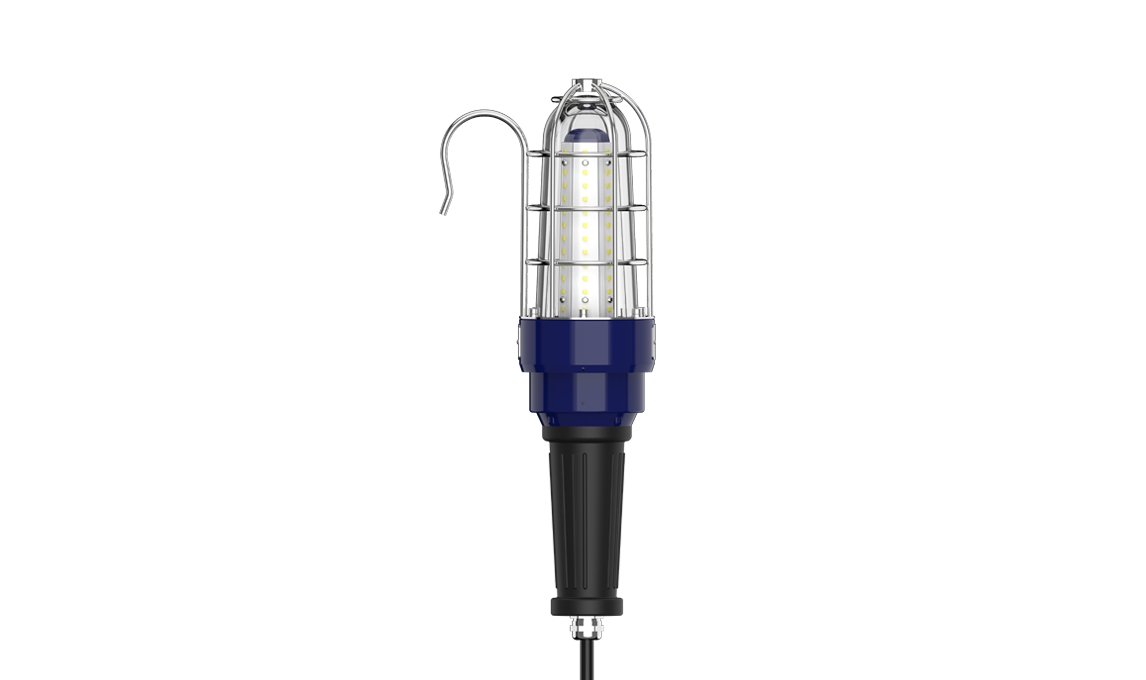

- The lights in this series are capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc. Our Portable Electric Hand Lamps are designed for Zone 1, Zone 2, Zone 21, Zone22 environments.
ATEX: EN IEC 60079-0-2018; EN 60079-1-2014; EN 60079-7-2015;EN 60079-31-2014;
IECEx: IEC 60079-0-2017; IEC 60079-1-2014; IEC 60079-7-2017; IEC 60079-31-2013;
IECEx & ATEX :
- “WARNING – DO NOT OPEN WHEN ENERGIZED”
- “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；
- “WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD - SEE INSTRUCTIONS”
- THE FLAMEPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED.
- End user shall use certified cable gland type of protection for final installation purpose.
- Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 80℃ for T6.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 60.1℃ and cable entry point is 52.0℃.
- For handle, there is “POTENTIAL ELECTROSTATIC CHARGING HAZARD”. When used in the explosive environment, please touch with an insulating object, wipe with a damp cloth.
Features
- Industry-leading efficacy: up to 130lm/W±5
- -40°C to +50°CCAmbient operating temperature
- Swivel hook for hanging and hands free operation
- Prevent drop damage
- 5 years warranty
- Housing –Aluminum alloy (ADC12 )
- Lens – tempered glass (10mm)
- Beam angle:360°
Parameters
- Power: 10W / 20W / 30W
- Input voltage 1: AC100V-277V; Frequency: 50/60Hz;
- Input voltage 2: DC110V ;
- Input voltage 3: DC12V-24V;
- Lumen flux: 1300LM/2600LM/3900LM
- CCT: 6500K (Optional)
- LEDs: 3030
- LED Driver: High Efficiency LED Driver
- Entry Size: M20X1.5
- Dimension: Φ101.5 x 516.5 mm
- Weight: 2.4KG
Certificate & Standard
Have certified CES-EX-SC with the IECEX and ATEX standards for hazardous location and environments.
ATEX:
- II 2G Ex db eb IIC T6 Gb
- II 2D Ex tb IIIC T 80°C Db
- Certify No.：SEV 20 ATEX 0369 X
IECEx:
- Ex db eb IIC T6 Gb
- Ex tb IIIC T 80°C Db
- Certify No.：IECEx SEV 20.0003X
