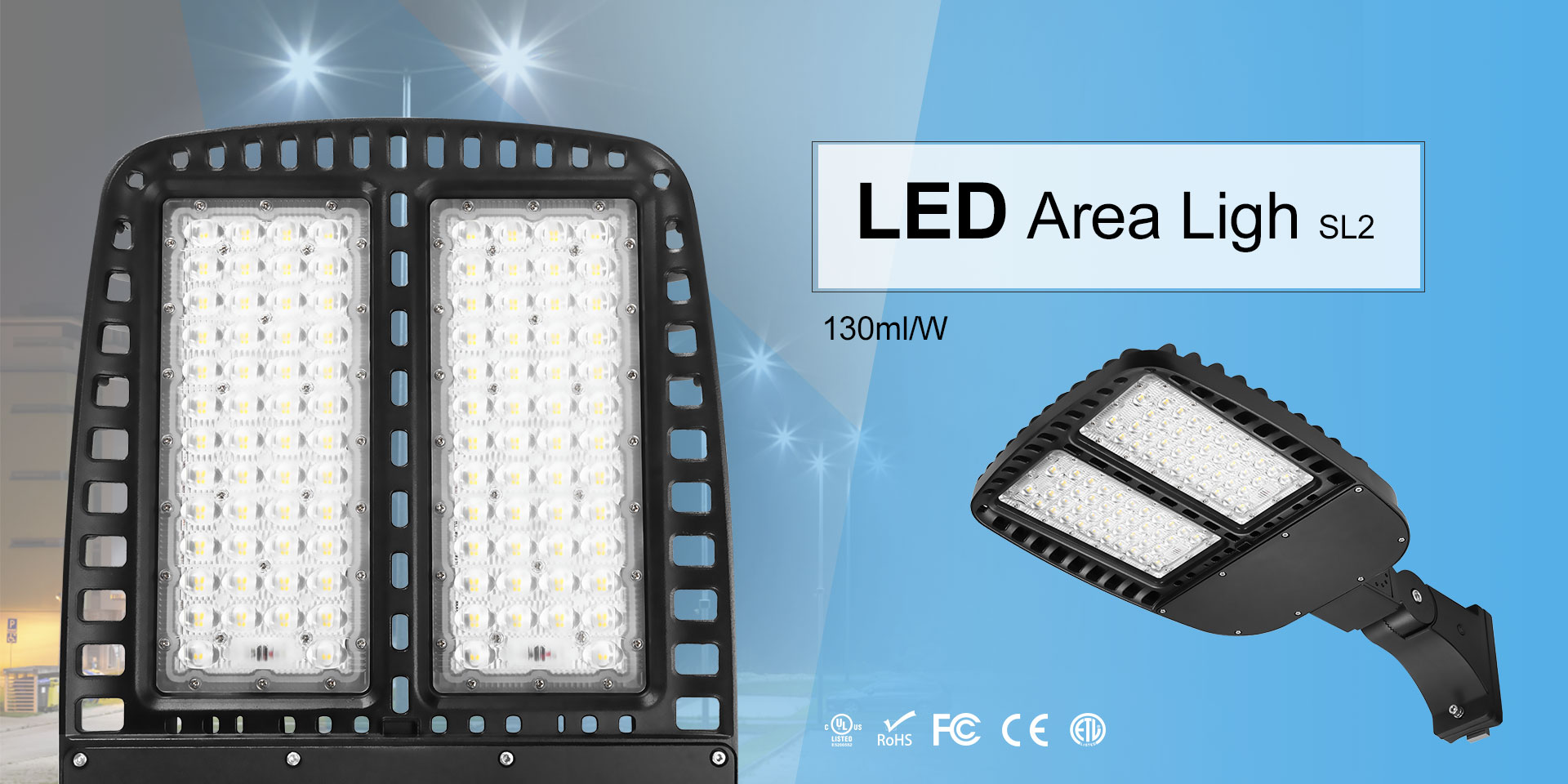

LED Shoebox Light / LED Area Light


Item NO.: CES-SL2



European and American design style, high quality aluminum die casting, DUPONT powder painting process, round shape design, never fade, anti-cracking.
Adopt aerodynamic design, take heat away quickly, keep low temperature for heat sink and LED chip for longer lifespan and higher light efficiency.
A variety of installation ways, suitable for round pole, square pole, wall, ground and so on. All the screws are SUS316 stainless steel screws with stronger corrosion resistance ability.SMD3030 led chip, high CRI, light efficiency up to 140lm/w, low light decay and long lifespan.
SOSEN high efficiency series 12KV anti-surge LED driver, installed on die casting cover of led driver, take heat away quickly to keep lower temperature and longer lifespan.
Through various of experimental tests: wind resistance level test, conduction radiation, 1.5G seismic test, UV aging test, drop, stacking test etc. Easy to install, save labor 50%.


outdoor street light
100 watt led street light
led street lamp


Mic rowave motion sensor:

The MC601V innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.
Also, the 1-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.
As it uses the third generation Merrytek technology, normal 5. 8GHz microwave module can easily reach high mounting high up to 1 5m and long detection area 10m in radius.

  • Automatic switching or dimming when used in combination with 1-10V dimmable L ED drivers or ballasts.
  • Built-in daylight sensor.
  • 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
  • Compact size makes it suitable to fix within most luminaires.
  • Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  • Wide detection area, range upto 16m in diameter.
  • Support higher mounting height 1 5m Max.
  • Optional surface mounting and base mounting

street light too bright outside house

  • Applications

    LED Shoebox/Area Light series can be widely used in Parking lot , Urban roads, Industrial areas, Residential areas, Sidewalks, Schools, Gardens and etc.

  • Dimension:
    Shell materials: Aluminum & PC.
    Finish: Dark Bronze/White

havells led street light


  • Dimming function with 3 in1(0/1-10V)
  • Optional for motion sensor
  • Continuous dimming,continual dimming to 10%

LED Light Source

  • Luminous(Lumen): 7800LM - 92400LM
  • Light Efficacy: >130(LM/W)
  • CCT: 2700-6500 (K)
  • Ra: 70 / 80
  • Beam Angle: Type 3


  • Power: 60W - 660W
  • Input voltage: AC100-277V, AC200-480V
  • PF>90% and THD<20% (full loading)
  • 6-10KV surge protection
  • IP Rate: IP66
  • Working temperature: -40 to 50℃
  • Weight: 6.5 KG / 9.5KG / 10KG


  • Slip fitter mount (Adjustable Angle : -90° ~+90° )
  • Wall Mount (Adjustable Angle : -90° ~+90°)
  • Adjustable Square (Adjustable Angle : -90° ~+90° )
  • Trunnion (Adjustable Angle : -90° ~+90° )
  • Round Pole Mount(Adjustable Angle : -90° ~+90° )
  • U-bracket (Adjustable Angle : -90° ~+90° )
