CESP-UFO HIGH BAY LIGHT

Power:100W/150W/200W



LED light is a device which are consist of die-cast aluminum alloy heat-sink, PC optical lens, LED light source model and diver. It can be a replacement of HID and other traditional light fixture, provided with higher efficacy, a longer lifetime 50,000H at least or even more up to 100,000H but very lower breakdown opportunity, higher reliability and better cost than before, lower output voltage 60Vdc means safety for use. It provides different light distribution angle by optical lens without reflector.





Application

  • large industrial area, parking field, sidewalks
  • IP65,wet location
  • Working temperature:-40 ℃ to 50℃



Optics feature

  • CCT:2700-6500K
  • CRI:80
  • Beam angle :110°
  • Light efficacy:140Lm/W

Electronic data

  • Input voltage:100-277Vac
  • 6-10KV surge protection grade
  • PF>95% and THD<10% (full loading)
  • Free of flickering



Smart function

  • Dimming function with 3 in1(continual dimming)
  • Optional for motion sensor and photo cell controller
  • PF>Finishing: Brown/White/Black/Customerization
  • 5 years warranty

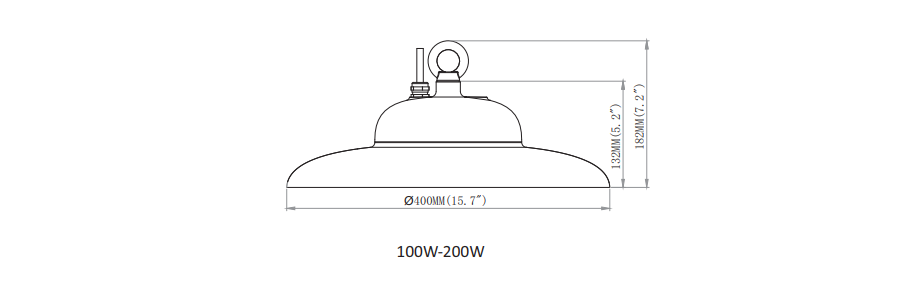

Dimension



explosion proof led high bay lighting size

Applications

lndustry Lighting: production workshop,assembly lineall kinds of processing sites. Large commercial facilities: Supermarkets,shopping centersconvention and exhibition centeraisle, exhibition hall. Public Place: Gymnasium,indoor stadiumparking garage. Logistics Center: such as warehouses,logistics centersand so on

Notes for This UFO LED High Bay Light:

  • Avoid dropping of LED High Bay light, otherwise High Bay light will be damaged;
  • Forbid to install the High Bay light when power on. before power on , please Make sure that wiring is correct once installation finished;
  • Ensure stable installation and correct connection to avoid short -circuit damage to the High Bay light and causing fire hazard;
  • Please do not stare at the High Bay light for a long time when it is working to protect your eyes;
  • Only professional personnel may dismantle and repair.
