Lighting design should fully consider the characteristics of continuity, automation, high speed, high taxes and benefits of cigarette production, as well as local dusty, humid, and high-temperature environmental conditions to ensure reliable lighting and good vision, pay attention to safety protection, and prevent electric shock and electrical Fire etc.
- The choice of lighting method
- According to the various layout and use requirements of the craft, under the principle of satisfying the visual requirements and energy saving, the general lighting partitions, general lighting or mixed lighting, etc. shall be used respectively, but the local lighting shall not be used alone.
- The lighting methods used in major production sites are as follows:
- General lighting should be adopted in the rolling package and filter rod forming workshop; when the lamps are arranged along the production line and the installation and commissioning are low, the general lighting of the partition is declared.
- Divisional general lighting should be adopted in the workshops of threshing and redrying, silk making, tobacco flakes, and tobacco expansion.
- Some areas of the leaf threshing and redrying and silk making workshops, such as the leaf distribution table, the leaf selection table, the exit of the cutting machine, and the exit of the drying machine, should adopt mixed lighting.
- Lighting standard value (Friendly reminder: this standard value is for reference only)
Standard value of illuminance of working surface in production and workplace
|
Production and workplace |
Standard value of illumination (1x) |
Note |
||
|
primary |
intermediate |
advanced |
||
|
Tobacco grading and batching room |
100 |
150 |
200 |
|
|
Threshing and redrying workshop |
100 |
150 |
200 |
|
|
Vacuum regaining section |
100 |
150 |
200 |
|
|
Point-cutting section |
100 |
150 |
200 |
|
|
Leaf base and tip selection section |
100 |
150 |
200 |
|
|
Leaf base and tip selection table |
150 |
200 |
300 |
|
|
Leaf and stem separation section |
100 |
150 |
200 |
|
|
Leaf redrying section, tobacco stem redrying section |
100 |
150 |
200 |
|
|
Blade packing section, tobacco stem packing section, broken leaf processing section |
100 100 |
150 150 |
200 200 |
|
|
Dust removal room |
30 |
50 |
75 |
|
|
Workshop sample room |
150 |
200 |
300 |
|
|
Packing material room |
30 |
50 |
75 |
|
|
Online control panel |
75 |
100 |
100 |
Screen vertical |
|
Silk workshop |
100 |
150 |
200 |
|
|
On-line control panel for the outlet of shredder (cut leaf shreds, cut stem shreds), silk dryer, and shredder shredder export |
150 75 |
200 100 |
300 150 |
Screen vertical |
|
Leaf storage cabinet, stem storage cabinet |
50 |
75 |
100 |
|
|
Wire storage cabinet, stalk storage cabinet |
50 |
75 |
100 |
|
|
Spice and sugar preparation room |
100 |
150 |
200 |
|
|
Dust removal, smoke and dust treatment room |
30 |
50 |
75 |
|
|
Rolling and wrapping workshop |
75 |
100 |
150 |
|
|
Roll-up package, packing section |
150 |
200 |
300 |
If it is a windowless factory, the illuminance will be increased by one level |
|
Finished product conveying corridor |
30 |
50 |
75 |
|
|
Cigarette temporary storage room |
50 |
75 |
100 |
|
|
Temporary storage room for auxiliary materials |
50 |
75 |
100 |
|
|
Finished product turnover warehouse |
50 |
75 |
100 |
|
|
Residual smoke treatment room |
75 |
100 |
150 |
|
|
Glue room |
75 |
100 |
150 |
|
|
Dust removal, smoke and dust treatment room |
30 |
50 |
75 |
|
|
Vacuum pump room |
30 |
50 |
75 |
|
|
Auxiliary room of threshing and redrying, silk making, and wrapping workshop |
||||
|
Workshop inspection room |
150 |
200 |
300 |
|
|
Workshop control room |
100 |
150 |
200 |
|
|
Mechanical and electrical maintenance room |
300 |
500 |
750 |
|
|
Spare parts room |
30 |
50 |
75 |
|
|
Forklift charging room |
30 |
50 |
75 |
|
|
Lubricant Room |
20 |
30 |
50 |
|
|
Filter rod forming workshop |
||||
|
Temporary storage room for tow and auxiliary materials |
50 |
75 |
100 |
|
|
Filter rod forming and launching section |
100 |
150 |
200 |
|
|
Triacetin temporary storage room |
30 |
50 |
75 |
|
|
Tobacco sheet workshop |
||||
|
Forming section |
100 |
150 |
200 |
|
|
Flake and flake wire storage room |
100 |
150 |
200 |
|
|
Tobacco expansion workshop |
100 |
150 |
200 |
|
|
Dry ice method tobacco expansion section |
100 |
150 |
200 |
|
|
Carbon dioxide storage room |
30 |
50 |
75 |
|
|
Quality control room |
100 |
150 |
200 |
|
|
Central control room |
100 |
150 |
200 |
|
|
Near looser |
150 |
200 |
300 |
|
|
Hot and cold end control panel |
75 |
100 |
150 |
Screen vertical |
|
Pump House |
30 |
50 |
75 |
|
|
Freon method tobacco expansion room |
100 |
150 |
200 |
|
|
Puffing treatment room |
100 |
150 |
200 |
|
|
Expanded tobacco storage room |
30 |
50 |
75 |
|
|
Central laboratory and tobacco testing station |
||||
|
Laboratory |
150 |
200 |
300 |
|
|
Cigarette Evaluation Room |
150 |
200 |
300 |
|
|
Auxiliary room |
75 |
100 |
150 |
|
|
storehouse |
||||
|
Original Tobacco Bank |
20 |
30 |
50 |
|
|
Finished product library |
30 |
50 |
75 |
|
|
Finished product turnover warehouse |
30 |
50 |
75 |
|
|
Tobacco Bank |
30 |
50 |
75 |
|
|
Tobacco turnover bank |
30 |
50 |
75 |
|
|
Tow library |
30 |
50 |
75 |
|
|
Paper Material Library |
30 |
50 |
75 |
|
|
Hardware spare parts library |
30 |
50 |
75 |
|
|
Flammable goods warehouse |
20 |
30 |
50 |
|
|
Scrap library |
20 |
30 |
50 |
|
|
Liquefied Petroleum Gas Storage |
20 |
30 |
50 |
|
|
Diesel depot |
20 |
30 |
50 |
|
Standard value of illuminance in auxiliary room
|
Room name |
Height of working surface from ground (m) |
Standard value of illuminance (1x) |
Note |
||
|
primary |
intermediate |
advanced |
|||
|
Office, data room, accounting room, file room, reception room |
0.75 |
100 |
150 |
200 |
|
|
Design room, drawing room, craft room |
0.75 |
150 |
200 |
300 |
|
|
Product showroom |
0.75 |
150 |
200 |
300 |
|
|
Reading room |
0.75 |
100 |
150 |
200 |
|
|
Typing room |
0.75 |
150 |
200 |
300 |
|
|
Binding room, copy room, printing room |
0.75 |
75 |
100 |
150 |
|
|
Infirmary |
0.75 |
75 |
100 |
150 |
|
|
Workshop lounge |
ground |
50 |
75 |
100 |
|
|
Canteen |
0.75 |
50 |
75 |
100 |
|
|
kitchen |
0.75 |
75 |
100 |
150 |
|
|
Bathroom, changing room |
ground |
20 |
30 |
50 |
|
|
Toilet |
ground |
10 |
15 |
20 |
|
|
bathroom |
0.75 |
20 |
30 |
50 |
|
|
hall |
ground |
30 |
50 |
75 |
|
|
Corridor, stairwell |
ground |
15 |
20 |
30 |
|
Standard value of illuminance in open spaces and roads
|
Place name |
Determine the plane of illuminance |
Standard value of illuminance (1x) |
Note |
|||
|
Open space |
Tobacco yard |
ground |
2 |
3 |
5 |
|
|
Coal yard |
ground |
0.5 |
1 |
2 |
||
|
cooling tower |
Water tower platform |
2 |
3 |
5 |
||
|
Factory front area |
ground |
10 |
15 |
20 |
||
|
Factory road |
Main road |
ground |
3 |
5 |
10 |
|
|
Secondary road |
ground |
1 |
2 |
3 |
||
- Lighting requirements for cigarette factories
The system layout of the cigarette factory is more complicated. Therefore, in its lighting design, first determine the choice of lamps of a certain model and power, then reasonably determine the arrangement of lamps and lanterns and lamps number.
Lamp selection:
- Flameproof lamp
- Waterproof and dustproof lamps
- Anticorrosive lamps
- Shock-resistant and impact-resistant lamps

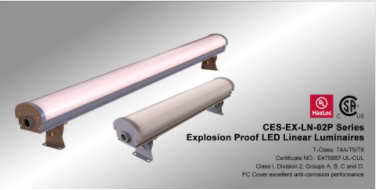

Application of CESP LED explosion-proof lighting in cigarette factories:
CESP high-quality explosion-proof led lamps can be used in Zone 1 and Zone 21, Class I Class 1 and Class 2, and Class II Class 1 and Class 2 hazardous locations. They are very suitable for lighting At the cigarette factory.
|
Lamp type |
Lamp picture |
Application area |
|
|
Trestle roads, on-site roads, unloading dockes, loading docks, etc. |
|
|
|
Storage yard, belt conveyor corridor, transfer building, shipping dock, etc. |
|
|
|
Such as oil refineries, offshore production, drilling platforms, fuel depots, chemical plants, cigarette factories |
